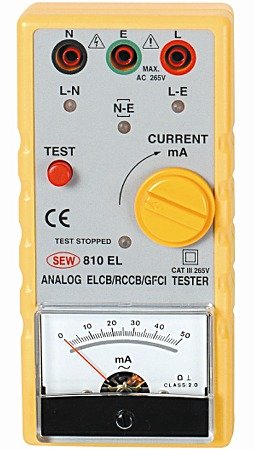

Sew 810 EL

Category: Analogue ELCB Testers
FEATURES
● Wiring check.
● Can be used on 2 wires L-E (ELCB/RCCB/GFCI tester).
● Can be used on 3 wires L-E-N (with wiring check).
● Sense automatically 50 or 60 Hz.
● No battery required.
● Simple operation.
● Current injected in phase with the voltage.
● Fused.
● Wide operating voltage (195Vac to 265Vac).
● Other voltage optional (110V).
● Robust.

  SPECIFICATIONS


Wiring check LEDs Line-Neutral = Green
Line-Earth = Green
Neutral-Earth =Red
Current settings 10-50mA@230Vac>
Current selection Knob
Frequency of
operation		 50/60 Hz Sinusoidal
Over-Temperature
Protection		 Yes by NTC sensor Test stopped
indication by Red Led.
Operating voltage (L-E) 230 Vac ±15%
Meter accuracy ±3% of full scale
Operating temperature -5°C to 45°C
Storage temperature -10°C to 55°C
Dimensions 150(L) × 73(W) × 50(D)mm
Weight Approx. 220g
Safety standard EN 61010-1 CAT III 265V
EN 61326-1
