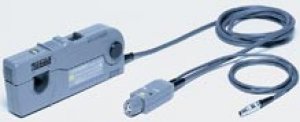

Frequency bandwidth: DC to 10 MHz
Maximum continuous input range: 150 Arms Functions with Digital Oscilloscopes, Scopecorders or other waveform measuring instruments.
- Bandwidth: DC to 10 MHz; current measurement: Max 150 A
- Clamp configuration makes current measurements easy
The probe simply clamp around the conductor being measure. - No external amplifier required: Connects directly to DL series instruments
The probes can be directly connected to the 1 MΩ BNC inputs on the DL series instruments without the need for connection to a costly external amplifier. All probes in our lineup are space-saving, easy to carry, and offer superior performance at a reasonable cost. - Powered by the DL's probe power supply terminal
The probes are also compatible with external power supplies. - Current values can be read directly on DL series instruments
Using the current probe selection menu eliminates the need to enter current/voltage conversion values. - Includes demagnetizing switch and zero adjust dial functions
- Relationship between the current being measured and probe's current consumption
- 701934 probe power supply
- APPLICATIONS
- Inverter currents
- Switching power supply inrush currents
- Motor load currents
- Breaker characteristics
- Transformer/transmission systems
- Fuel cell operation and characteristics
- Power supply current waveforms
- Power device consumed current
- Vehicle electrical systems
